Specification

Input voltage: AC100V-240V 50/60Hz
Rated (power) power: 150W
Light source: 1 80W white light LED + 21 0.3W (RGB) LEDs
Optical aperture: 100MM
Light output angle: 3°
Color temperature: 7000K
CRI index: Ra≥90
Optimal projection distance: 5M
Illuminance: 3400Lux@10M
Average LED life: 50000h
Dimming curve: 0-100% linear dimming
Flicker: 1-13Hz
Color Color wheel: 7+1, supports forward and reverse, adjustable speed
Fixed pattern wheel: 7+1, supports forward and reverse, adjustable speed
Prism: 1 18-prism, adjustable speed

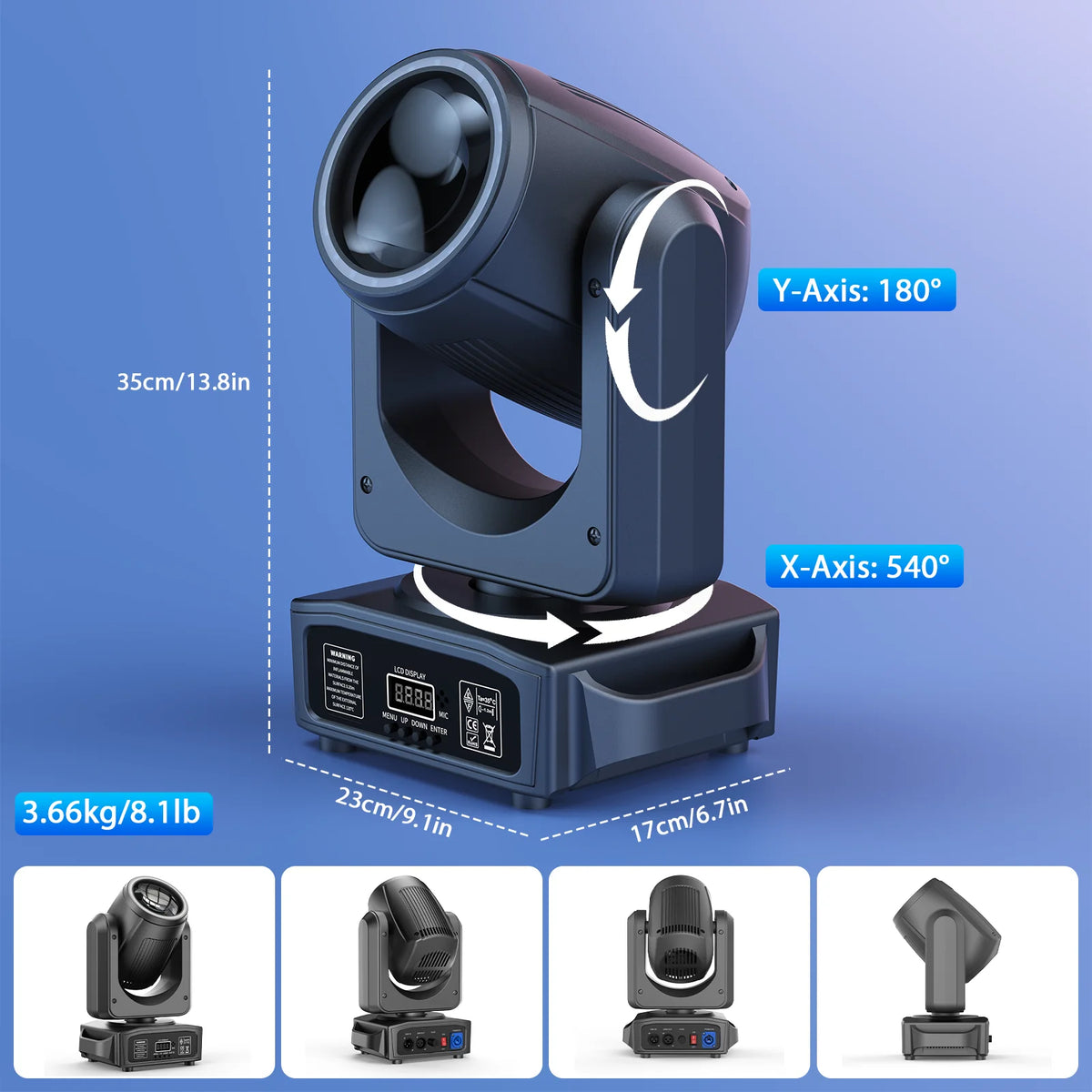

X axis: 540°
Y axis: 180°
Operation mode: self-propelled, voice control, master-slave, DMX512
Control channel: 14CH
Protocol: standard DMX512 protocol, RDM protocol
Data connection: three-core XLR input/output
Display: 4-digit digital display
Protection level: IP20
Working environment: -20℃-40℃
Material:ABS plastic
Product size:23*17*35cm/9.1*6.7*13.8in
Net weight:3.66kg/8.1lbs

Features

1. Global Voltage & Energy-Efficient LED
Compatible with AC 100V-240V worldwide, featuring a power-saving LED light source for stable performance, long lifespan, and exceptional durability.

2. High-Precision Optics & Bright Output

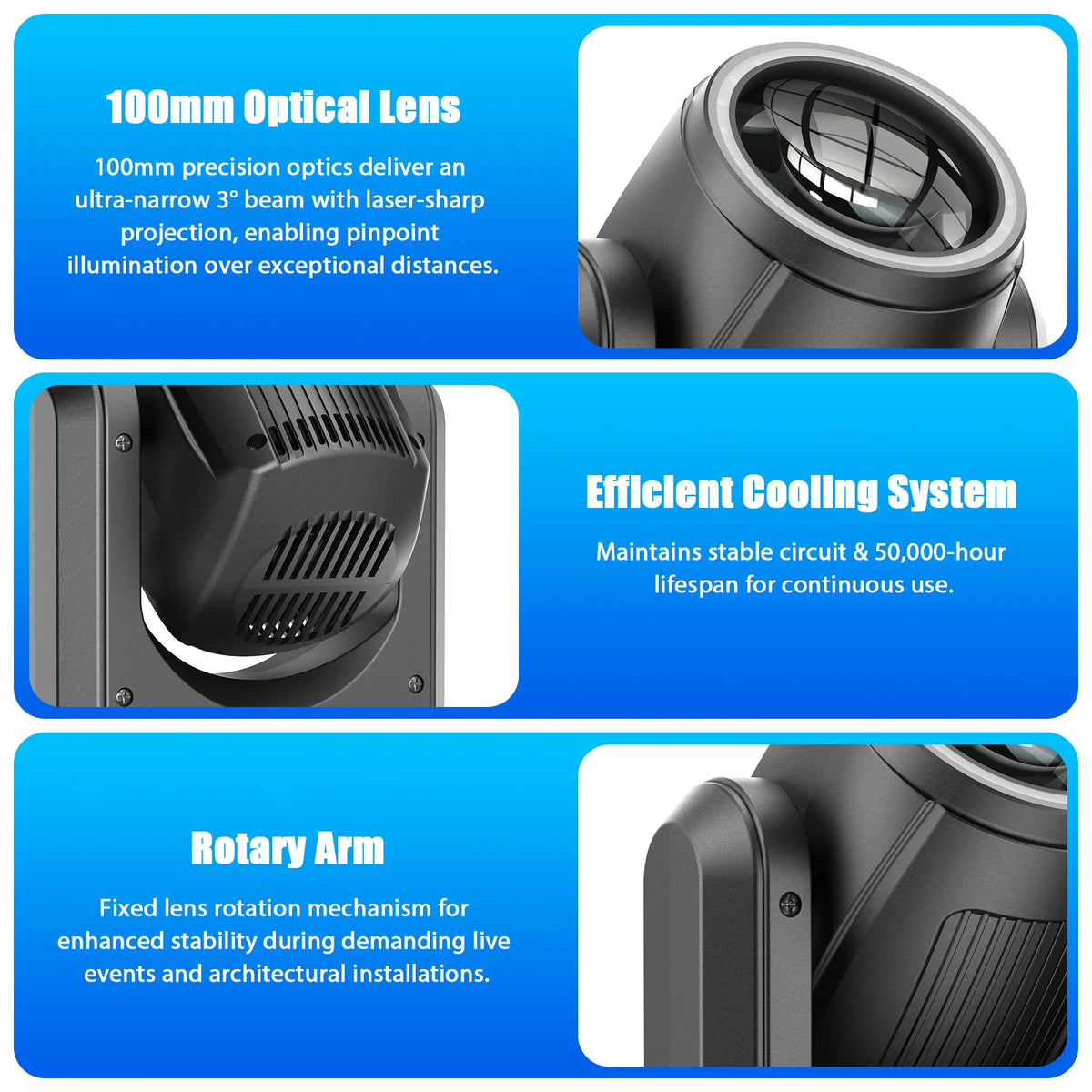

100mm optical aperture with 3° ultra-narrow beam angle, 7000K cool white light, and CRI≥90 for vivid colors. Delivers 3400Lux at 10m, with a 5m optimal projection distance for sharp, crisp lighting effects.

3. Smooth Dimming & Dynamic Effects
0-100% linear dimming, 1-13Hz strobe, and 7+1 color/pattern wheels with reversible rotation & speed control. 18-facet rotating prism adds versatile beam effects for creative lighting.

4. Multiple Control Modes & DMX512 Support
Features auto, sound-active, master/slave, and DMX512 modes with 14-channel programming. RDM-compatible with 3-pin XLR and a 4-digit display for easy operation.

5. Long Lifespan & Rugged Design
Up to 50,000-hour LED lifespan, operates in -20℃ to 40℃ environments. Durable ABS housing ensures reliability for stages, events, and installations.

Packing list:

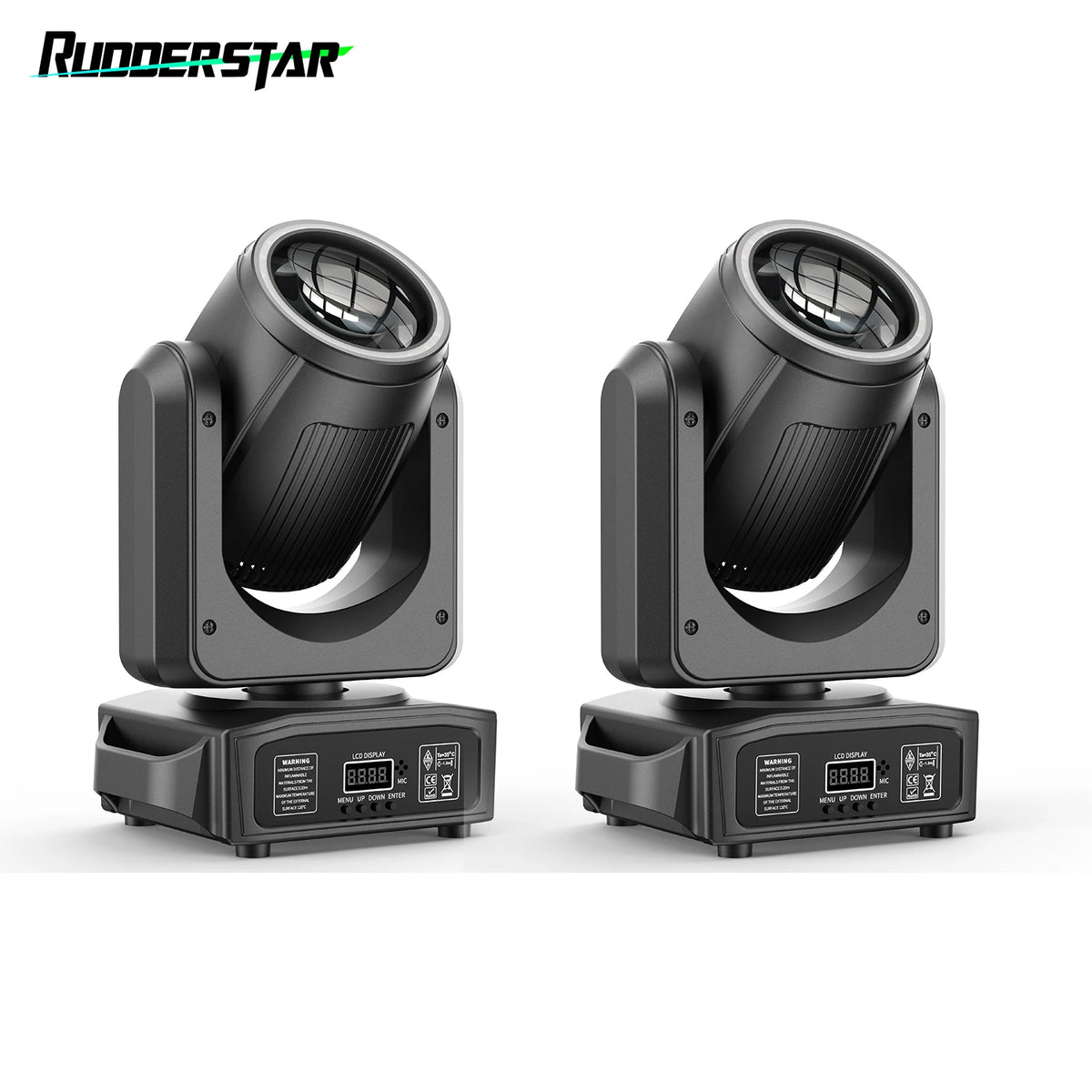

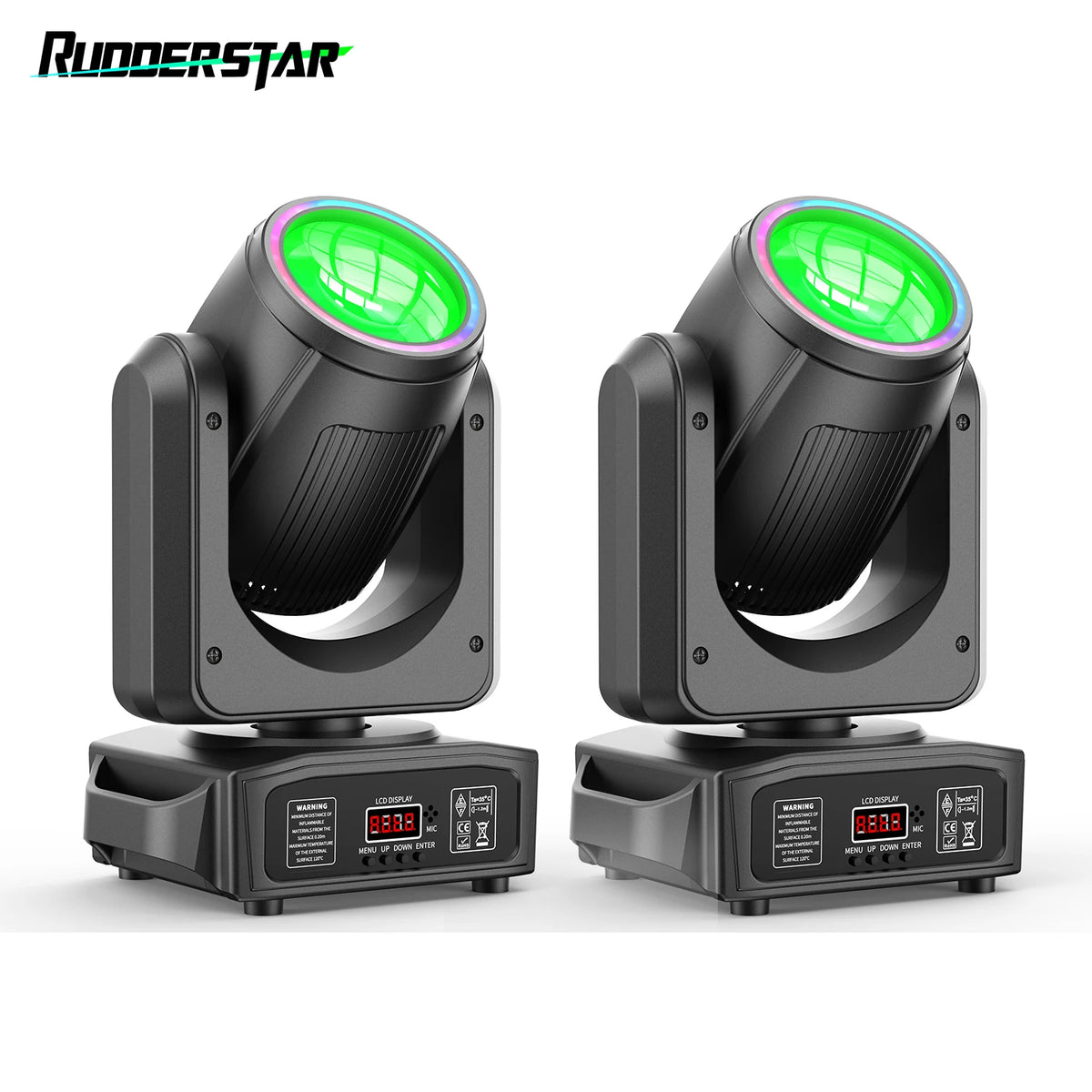

Moving Head Light *2
